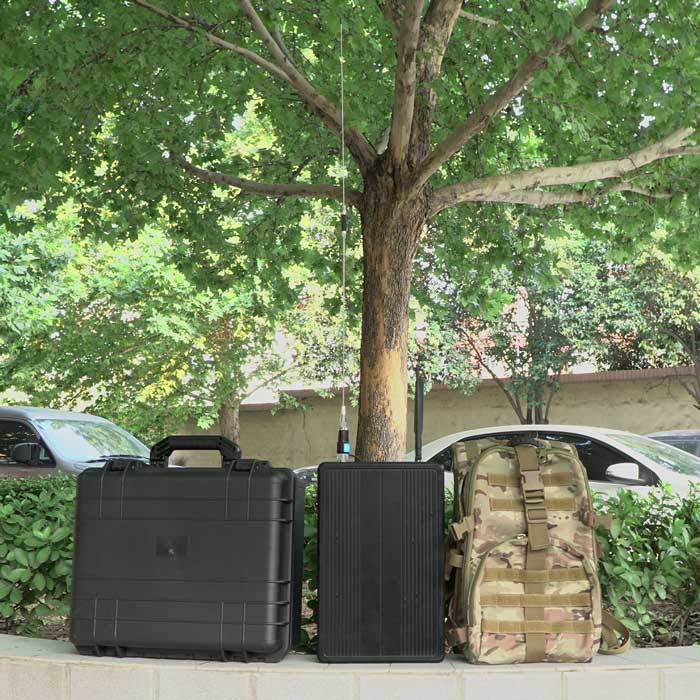

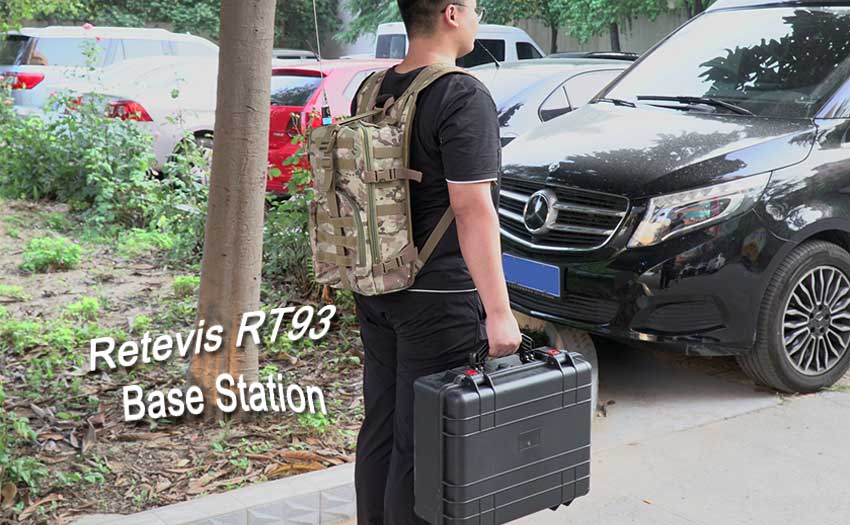

Retevis RT93 (Mobile Piggyback) Digital Private Network Base Station

Retevis RT93 (Mobile Piggyback) Digital Private Network Base Station

Retevis RT93 (mobile piggyback) digital private network base station is coming.

It is very convennient for you to use it when you are outdoors. Now let's take a look.


RT93 Main Features:

1. The intuitive status panel: The host panel comes with various status indicators and interface identifiers, which is very User-friendly.

2. Dual time slot channel: Support standard DMR dual-slot working mode.

3. Channels supported: Up to 1024 channel switching with PC tools.

4. Adjustable transmit power: The transmit power can be adjusted according to actual needs, from 1 to 25 watts.

5.Flexible IP networking: The device is connected in an IP interconnection mode, and supports wired access mode or wireless access modes such as WIFI, 3G/4G, and satellite communication to implement voice and data communication.

6.Powerful scheduling management: Scheduling platform can implement scheduling management functions such as device management, terminal management, group logical allocation, and voice scheduling.

7.Analogital back to back: The back-to-back solution enables analog and digital walkie talkies to interoperate in different modes of operation, ensuring a smooth transition of analog users to numbers.




RT93 Technical Parameters:

Transmitter

Output power

1~25WContinuous adjustable

FM modulation Mode

11KOF3E@12.5KHz

14KOF3E@20KHz

16KOF3E@25KHz

4FSK digital modulation

12.5KHz

Only data7K60FXD

Data and voice

Transmit Spurious

-36dBm1GHz

-30dBm1GHz

Modulation limit

±2.5KHz@12.5KHz

±4KHz@20KHz

±5KHz@25KHz

FM Noise

40dB@12.5KHz

43dB@20KHz

45dB@25KHz

Adjacent Power

60dB@12.5KHz

70dB@20/25KHz

Audio Response

+1~-3dB

Audio distortion

≤3%

Digital voice encoder

AMBE++ or SELP

Digital Protocol

ETSI-TS102 361-12&3




Receiver

Sensitivity

Analog

0.3μV12dB SINAD



0.22μVTypical)(12dB SINAD



0.3μV20dB SINAD


Digital

0.3μV/BER5%

Adjacent channel selectivity

TIA603

65dB@12.5KHz/75dB@20/25KHz


ETSI

60dB@12.5KHz/70dB@20/25KHz

Intermediation

TIA603

75dB@12.5/20/25KHz


ETSI

70dB@12.5/20/25KHz

Spurious Response

TIA603

75dB@12.5/20/25KHz


ETSI

≥70dB@12.5/20/25KHz

Block

TIA603

90dB


ETSI

90dB

84dB

Signal-to-noise

40dB@12.5KHz


43dB@20KHz


45dB@25KHz

Audio Distortion

≤3%

Audio response

+1~-3dB

Conducted emission

≤-57dB

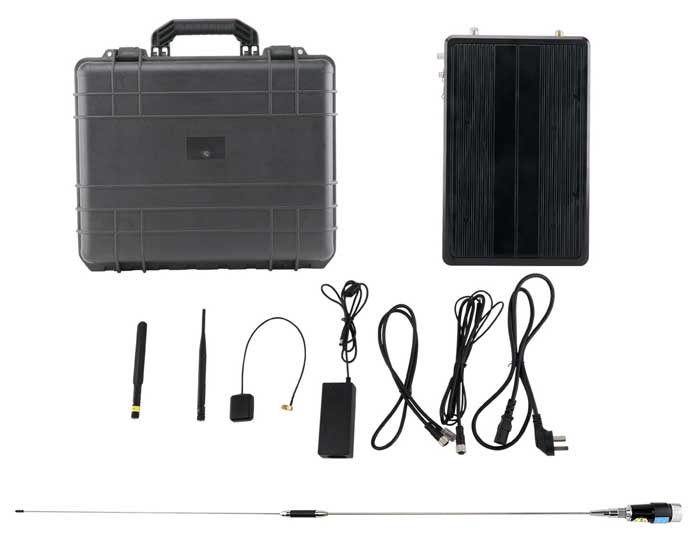

RT93 Package includes

 1 x RT93 piggyback digital private network base station

 1 x Backpack

 1 x 450MHz antenna

 1 x 4G Antenna

 1 x GPS antenna

 1 x WIFI antenna

 1 x Power cable

 1 x User Manual
