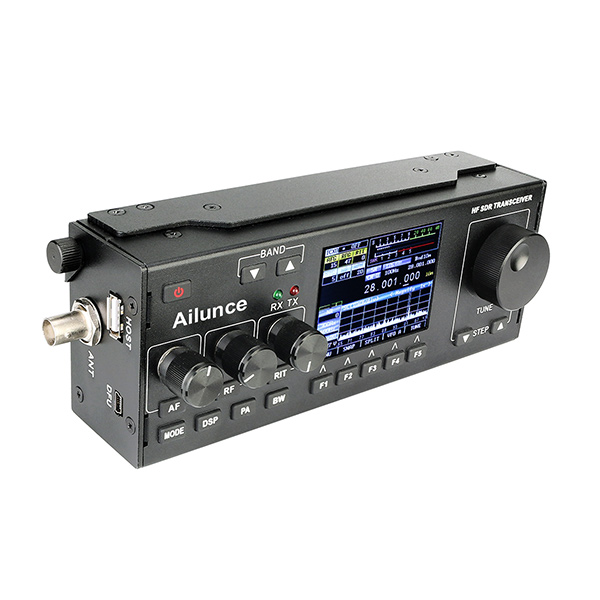

0.5MHz-30MHz HF SDR Transceiver
HS1 without Battery
Description:
Spectrum Dynamic Waterfall Display
Multiple Working Modes：Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode
DSP Digital Signal Processing Noise Reduction
Automatic Notch Filter
Humanized Interface Color Display
Receive Fine Tuning Function, Changeable MIC Gain Value
VCC Power Supply Voltage Indication Table
Transmit Signal Strength Display Table
Multifunctional Instrument：SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter
Feature:
Frequency Range：0.5MHz-30MHz
Operating Mode：SSB(J3E), CW, AM, FM, FREE-DV
TX Power：Maximum 15W
Receiving Sensitivity：0.11~0.89µV (RFC 50-20)
Minimum Frequency Step：1Hz
Operating Voltage：9-15V DC
Antenna Impedance：50Ω
Frequency Stability：±1.5PPM @ Power on 5 Minutes(Standard); ±0.5PPM if Optional TCXO Used
Package Size：240mm*120mm*80.mm
Package Weight：977g
Technical parameters:
Frequency Range | RX：0.5MHz-30MHz TX：0.5MHz-30MHz |
Output Power | Maximum 15W |
Receiving Sensitivity | Better than -115dBm |
Operating Mode | Full Modes |
Dimensions | 190mm*69mm*45mm |
Operating Voltage Range | DC 9-15V |
Maximum Current | 3.5A |
Transceiver comes with automatic key generator circuit, Can be connected to the use of automatic keys. | |
Standard Accessories:
1 x HS1 HF SDR Transceiver
1 x Hand Microphone
1 x Mounting Bracket
1 x DC Power Cable ( without power plug)
2 x Wrench
1 x Antenna Converter
1 x User Manual
HS1Plus with Battery
Description:
1. Portable，ultra-large capacity 3800mAh lithium polymer battery，Convenient for field use）
2. Support the whole machine charging and single battery charging
3. Support Type-C USB charging
4. Spectrum Dynamic Waterfall Display
5. Multiple Working Modes：Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode
6. DSP Digital Signal Processing Noise Reduction
7. Automatic Notch Filter
8. Display board interface：Line output (J1), line input (J2), microphone /PTT (J3), speaker/mobile phone (J4)
Feature:
Frequency Range：0.5MHz-30MHz
Battery Capacity：3800mAh Li-ion Battery
Operating Mode：SSB(J3E), CW, AM, FM, FREE-DV
TX Power：Maximum 15W
Minimum Frequency Step：1Hz
Operating Voltage：9-15V DC
Antenna Impedance：50Ω
Frequency Stability：±1.5PPM @ Power on 5 Minutes(Standard); ±0.5PPM if Optional TCXO Used
Package Size：243mm*198mm*87mm
Packed Weight: 1706g （Include battery and bracket ）
Technical parameters:
Frequency Range | RX：0.5MHz-30MHz TX：0.5MHz-30MHz |
Output Power | Maximum 15W |
Receiving Sensitivity | Better than -95dBm |
Operating Mode | SSB(J3E), CW, AM, FM, FREE-DV |
Dimensions | 208mm*81.09mm*73.2mm |
Operating Voltage Range | DC 9-15V |
Maximum Current | 3.5A |
Battery Capacity | 3800mAh Lithium-polymer Battery (DC11.1V) |
Weight(Battery and Mounting Bracket Included) | 919g |
Transceiver comes with automatic key generator circuit, Can be connected to the use of automatic keys. | |
Standard Accessories:
1 x HS1Plus HF SDR Transceiver
1 x Hand Microphone
1 x Mounting Bracket
1 x DC Power Cable
1 x Adapter
1 x 3800mAh Li-ion Battery
2 x Wrench
1 x Antenna Convertor
1 x User Manual
