If you’ve just received your Ailunce HA1G GMRS radio, congratulations! This is a great step into the world of amateur radio, whether you're interested in local communications or just want to explore the exciting world of ham radio. However, as with any new piece of equipment, there are several key things you should know to get the most out of your HA1G. This guide will help you understand the essentials and how to set up your new radio for optimal use.
1. Understanding the Basics of the HA1G
What is the Ailunce HA1G?
The Ailunce HA1G is a high-performance GMRS handheld radio designed for both personal and team communications. While it is primarily designed for General Mobile Radio Service (GMRS) use, it also features the capability to receive signals in both the UHF and VHF bands. However, it is important to note that the HA1G can only transmit on GMRS frequencies and cannot transmit on UHF/VHF bands.
Key features include:
-
-High Power & Long Range: Selectable high/low power, up to 5W output for strong signals, ideal for outdoor and multi-building communication.
-
-Dustproof & Waterproof: Waterproof up to 1m for 30 minutes, resistant to harsh conditions like strong winds and rain.
-
-Long Battery Life: 2800mAh battery, offers a full day of standby, perfect for outdoor workers with limited charging opportunities.
-
-Team-Friendly: 30 GMRS channels and 220 programmable channels, ideal for repeater use and large team coordination.
-
-VHF/UHF Dual Band: Can receive on two channels simultaneously, ensuring you never miss important updates.
2. Getting to Know the Buttons and Features
When you first pick up the HA1G, it’s important to familiarize yourself with the layout and functions of the radio. Here are the key components:

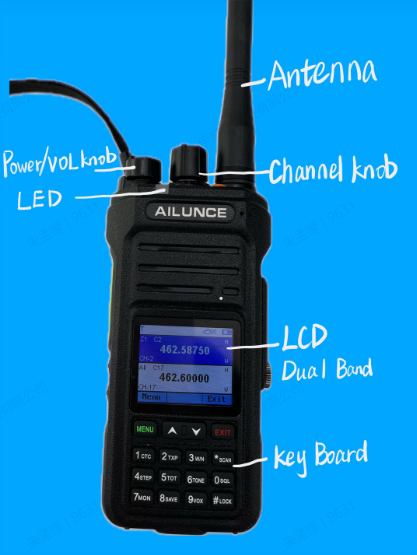

Front Panel Overview
-
LCD Screen: Displays essential information such as frequency, mode, and battery status.
-
Frequency Control/Channel Knob: Adjusts the operating frequency/Channel.
-
Menu Button: Accesses the settings menu where you can configure advanced features.
-

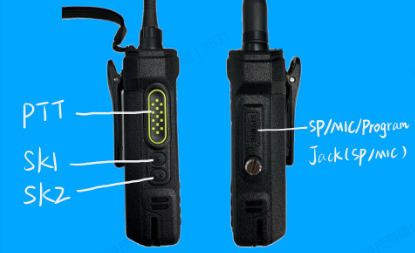

PTT (Push-To-Talk) Button: Used to transmit a signal; hold it down while speaking.
-
-
Power/Vol Knob: Turn on the radio, and Adjusts the audio output level.
-
3. Programming Your Ailunce HA1G
The HA1G has a programmable memory feature, which means you can store frequencies that you use frequently. Here’s how to program a channel on the HA1G:
Step 1: Enter VFO Mode
Long Press and hold the Menu button to enter VFO mode, where you can manually tune to the desired frequency.
Step 2: Set the Frequency
-
Use keypad to input the frequency to the desired value. You can also input specific GMRS or ham frequencies.
Step 3: Store the Frequency
-
After tuning to your desired frequency, press Menu again, select Radio, then select "Save Channel".
4.CTCSS/DCS Encoding
GMRS radios often require specific CTCSS or DCS tones to prevent interference from other radio users on the same frequency. These tones ensure that your radio only activates when a matching tone is received, thereby filtering out unwanted signals.
MENU-Channel-GMRS Channel-CTC/DCS
5. Basic Communication Etiquette
When using the HA1G for communication, it’s essential to follow basic radio etiquette to ensure clear and respectful conversations.
Key Communication Tips:
-
Always identify yourself using your call sign if you're operating on a ham band (e.g., "This is [Your Call Sign], listening on 28.450 MHz").
-
Keep your transmissions brief and to the point.
-
Listen first to ensure the channel is clear before transmitting.
