DKGP10 10 Band/3.5Mhz-54Mhz/100W/Portable Shortwave Antenna/HF Antenna 2021Version

DKGP10  10 Band/3.5Mhz-54Mhz/100W/Portable Shortwave Antenna/HF Antenna  2021Version

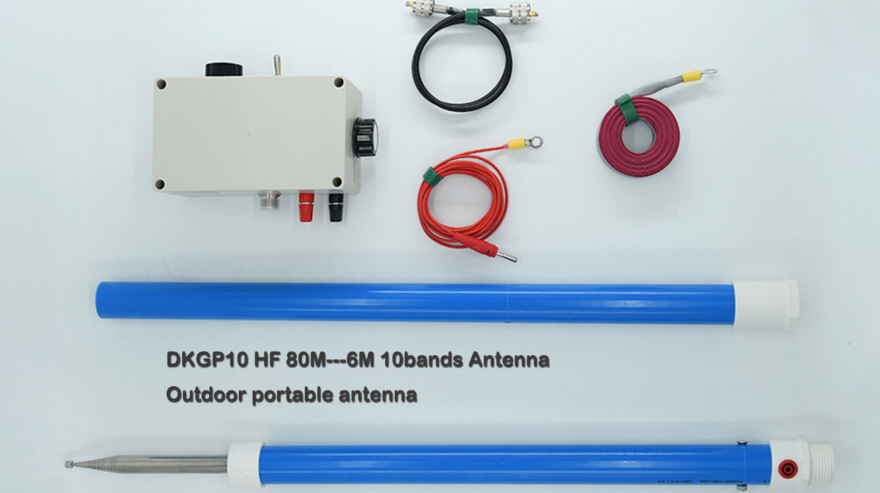

DKGP10 2021 version portable shortwave HF 10 bands antenna.

Transmit frequency: 3.5Mhz---54Mhz
Power: 100W
Standing wave: less than 1.5 (refer to adjustment method)
Receiving frequency: 0.5-500Mhz

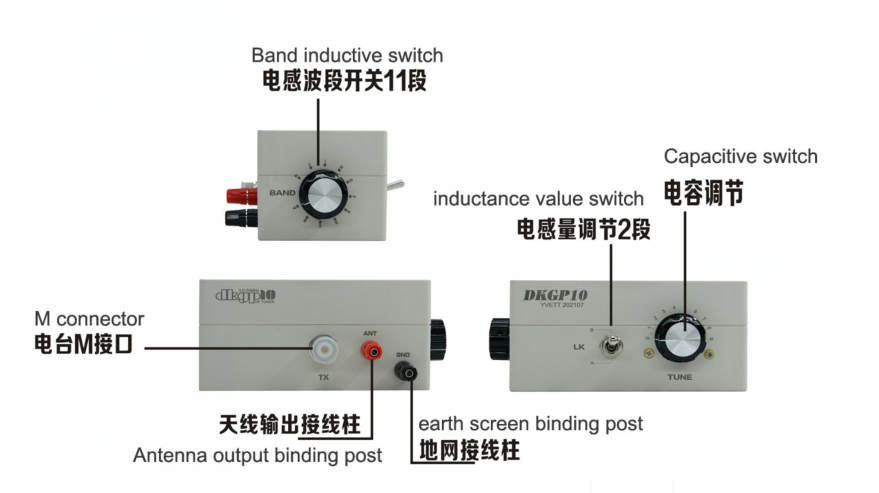

2021 Version Tuner Box

Band: Band Inductive Switch 11 bands,

LK: inductance value switch 2 bands.

Tune:Capacitive switch.

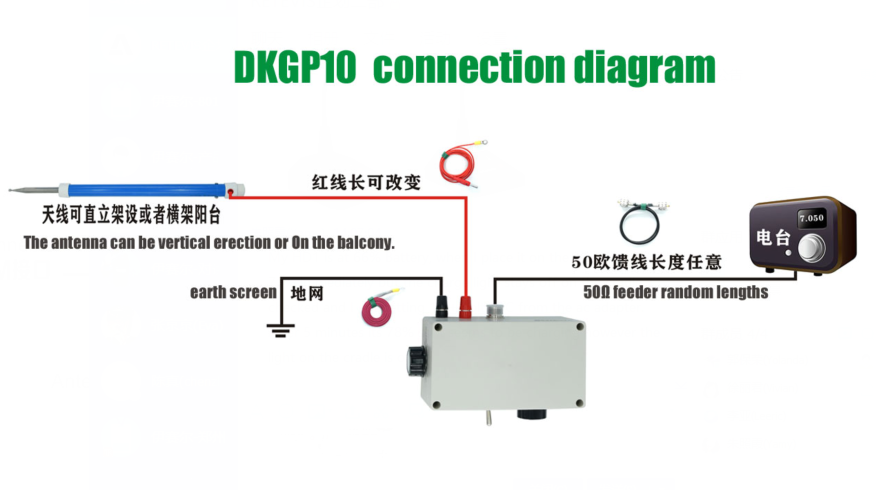

HF antenna connection diagram

Transmit Parameters

Generally, the antenna parameters used in different environments are not the same, and the best standing wave is found through the combination of BAND inductance and TUNE capacitance. The following table is only for reference.

Test environment:

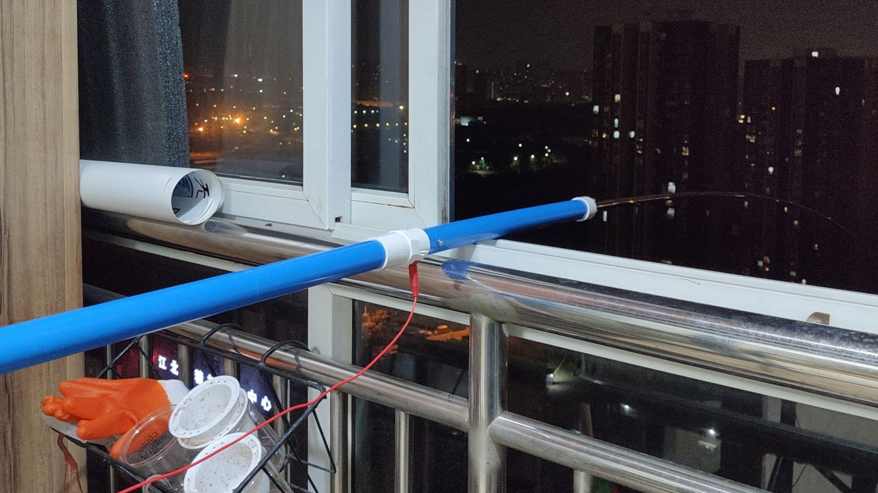

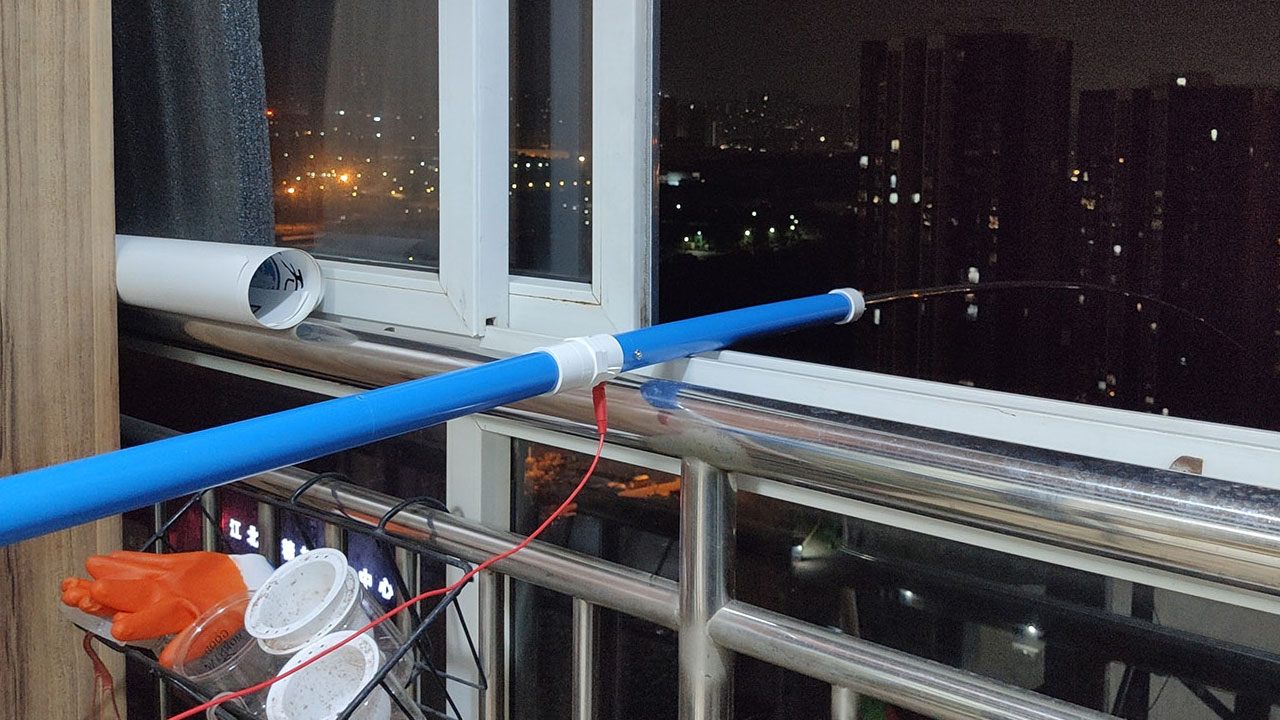

The red line length is 3m, and on the balcony.

 Band

Frequency MHz

The parameters change with the environment

BAND Scale

TUNE Scale

LK













The radio is connected to a stabilized power supply

6M

51.100Mhz

C

8-9

A

10M

29.600Mhz

E

8-9

B

12M

24.900Mhz

E

7-8

B

15M

21.400Mhz

D

7-8

B

17M

18.100Mhz

C

8-9

A

20M

14.270Mhz

F

7-8

A

30M

10.110Mhz

K

4-5

A

40M

7.050Mhz

D\E

2-4

A

60M

5.360Mhz

F

4-5

A

80M

3.850Mhz

I

3-4

B

Band  Frequency

The parameters change with the environment

BAND

TUNE

LK













The radio is connected to battery.

6M

51.100

B

8-9

B

10M

29.600

D/E

7-9

B

12M

24.900

D/E

6-8

B

15M

21.400

D

6-8

B

17M

18.100

C

7-9

A

20M

14.270

F

7-8

A

30M

10.110

K

3-5

A

40M

7.050

D/E

4-6

A

60M

5.360

H

6-7

A

80M

3.850

K

7-8

B

The parameter table below shows that the red line is shortened to 30CM, which means that the transmitting antenna becomes shorter. The principle is to find the lowest standing wave point by combining the band switch and the capacitance knob.

Band

Frequency MHz

The parameters change with the environment

BAND刻

TUNE

LK













The radio is connected to a stabilized power supply.

6M

51.100

C

7-8

A

10M

29.600

B

6-7

B

12M

24.900

C

6-8

B

15M

21.400

E

7-8

B

17M

18.100

E

6-7

B

20M

14.270

F

3-4

B

30M

10.110

E

5-6

B

40M

7.050

G

6-8

A

60M

5.360

J

6-7

B

80M

3.850

K

4-6

A,B

In various balconies and outdoor environments, the scales of the BAND and TUNE knobs of the sky tuning are not the same. The red connecting line connects the tuning and the lever. The length of this line can be changed according to your actual situation. In addition, the antenna can also be directly connected to a 10-meter or 20-meter wire, and the adjustment method is the same. Master the method and draw inferences from one another.

Don’t think that the balcony antenna can achieve such a good effect as the top floor antenna, and don’t think that the balcony antenna can have the effect of positive V and reverse V. This is unrealistic. The balcony can only solve the problem that everyone can play. Of course, you should also think about it. How many antennas can be mounted on the balcony?
