Ailunce 10 Band Shortwave Balcony Whip Antenna New Version

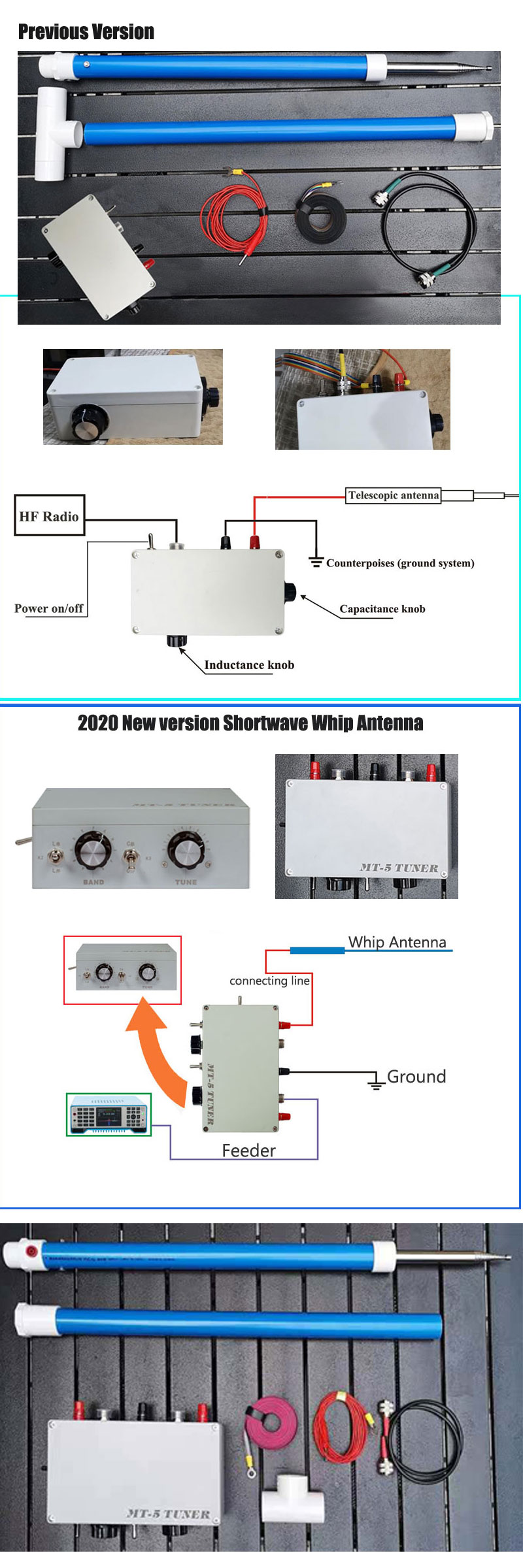

Compared with the previous generation

Increase multi-interface input and output.

Realize full-band use under radio battery power.

Using self-designed second-generation air capacitor 10-330PF.

Feature:

Magnetic ring inductance

Special air capacitor

Power: 100W

SSB and CW FM Data Transmission

Total length of telescopic antenna 6M

Frequency:

80米  3.5-3.9Mhz  (the signal is not so good tested in the Balcony)

60米  5.3305-5.3665Mhz

7-7.100Mhz                  40M

10.100-10168Mhz        30M

14-14.350Mhz              20M

18.068-18.168Mhz       17M

21-21.450Mhz              15M

24.890-24.990Mhz       12M

28-29.700Mhz              10M

51-54Mhz                     6M    (the signal is not so good tested in the Balcony)

Full band receive, also can receive U/V frequency.

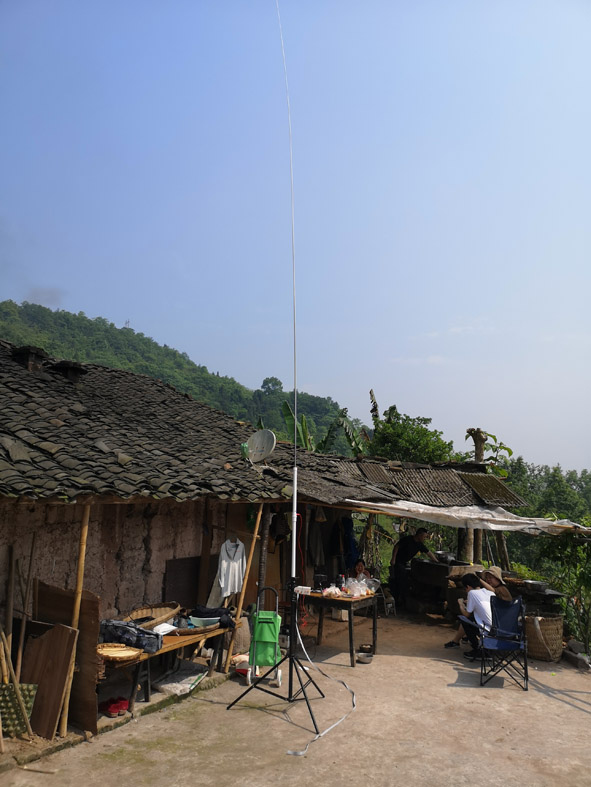

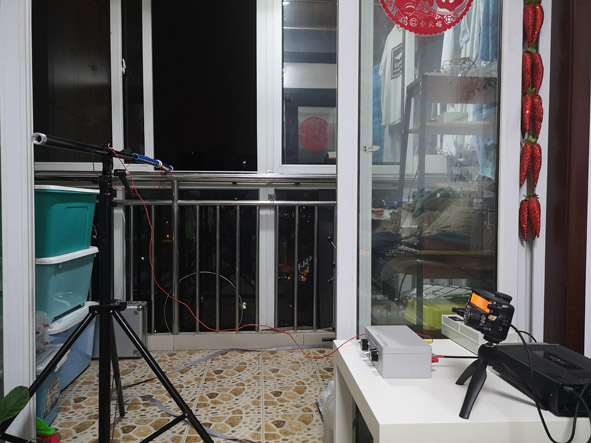

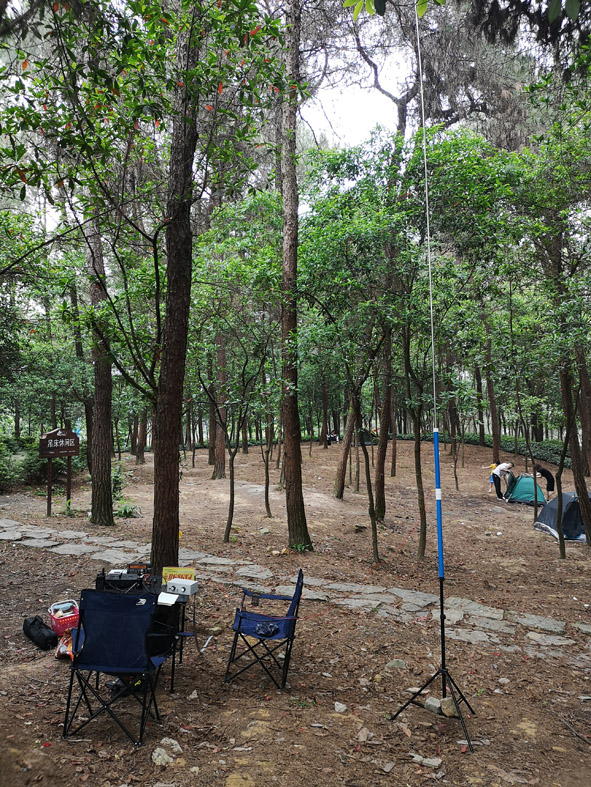

The above bands are all erected on the balcony and erected in the field.

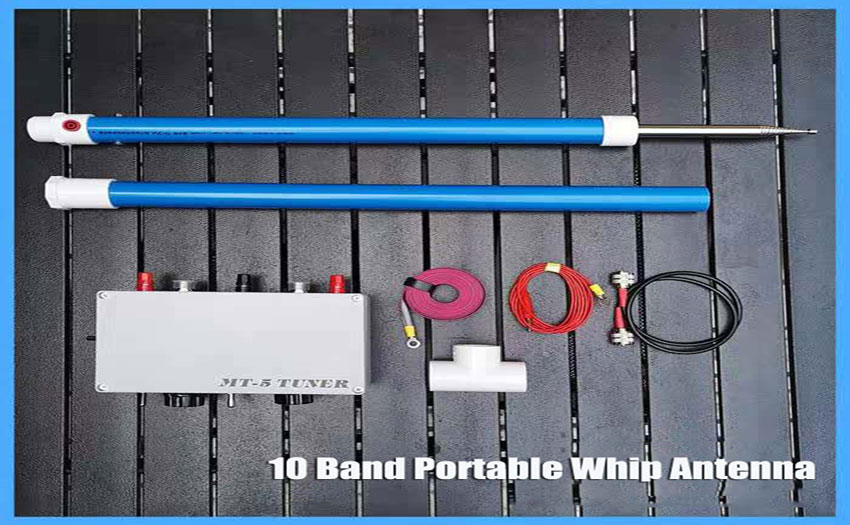

Package details:

1. Shortwave Whip Antenna × 1 (two sections)

 2. Antenna Tuner box × 1

 3. Flat cable ground network × 1

 4. End feed box with tie rod cable × 1

 5. 50-3 feeder × 1

 6. Instruction manual × 1

Not including the tripod.

Note: This antenna is more efficient above 14M, but not efficient below 14M.

and All hand made, maybe have some scratch.
