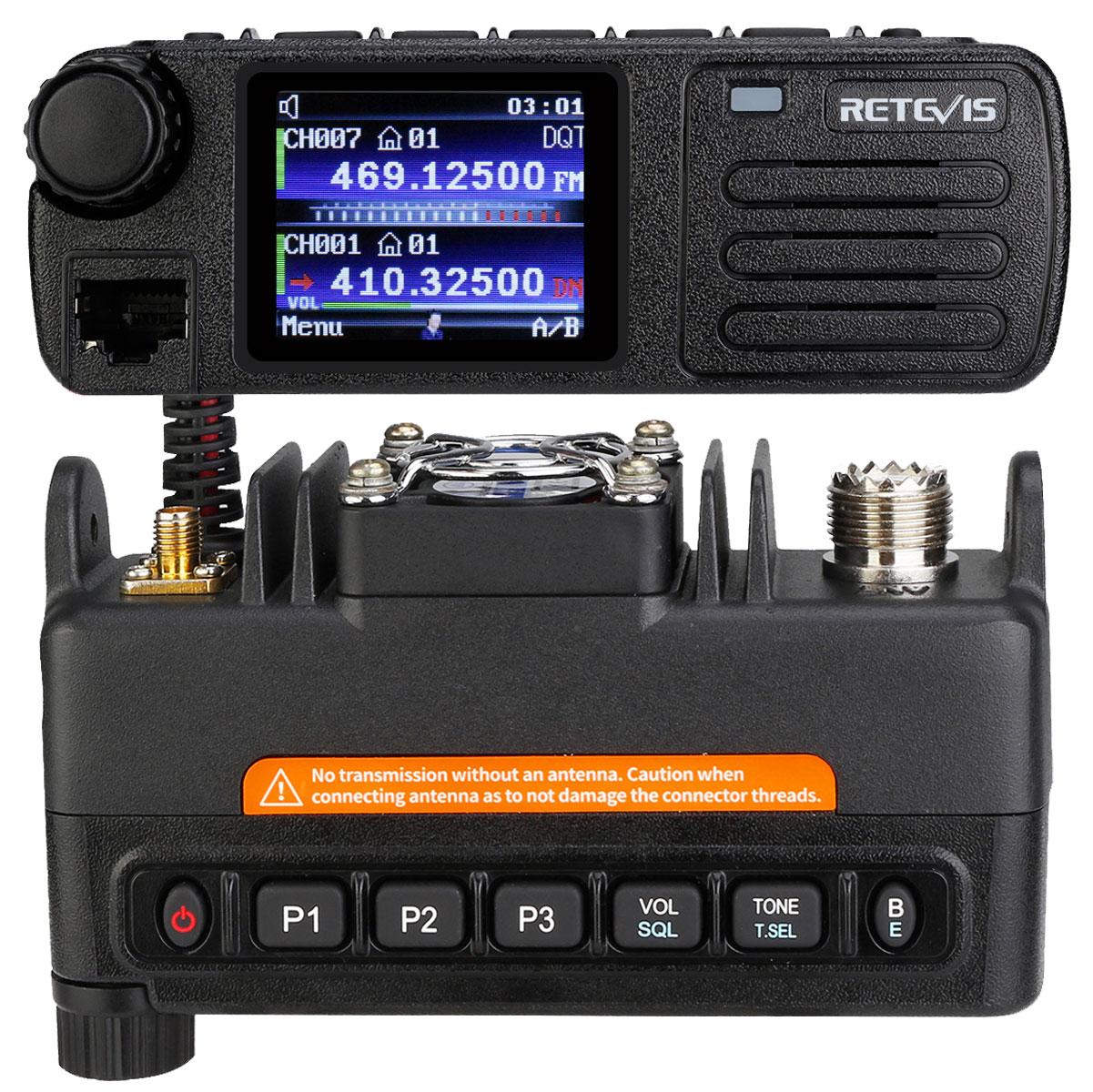

Digital & Analog Mobile Radio;
1.77 inch TFT LCD display;
Built-in GPS;
200,000+contacts;
Roaming;
Feature：
·200,000+contacts (complete worldwide database from DMR-MARC).
·20,000 call groups.
·250 text messages.
·4000-channel (250CH/Zone, 16 zones）
·Built-in GPS.
·True 2-time slot which allows for 2 talk paths one a frequency.
·Dual band, dual display and dual standby.
·AMBE vacoder, Crystal sound quality.
·Super small size, power up to 20W, be convenient for installation on any devices.
·Definable keys to ensure shortcut operation.
·Built in broadcast FM radio.
·Temperature control fan.
Roaming;
Technical Parameters:
|
General
|
|
|
Product number
|
RT73
|
|
Frequency range
|
UHF：400-480MHz
VHF：136-174MHz
|
|
Channel number
|
4000 (250 Channels / Zone)
|
|
Channel spacing
|
12.5KHz/25KHZ
|
|
Standby current
|
160mA
|
|
Operating temperature range
|
-20℃~+50℃
|
|
The antenna impedance
|
50Ω
|
|
Overall dimensions
|
121.5*65.5*42.5mm
|
|
Rated Voltage
|
DC-13.8V
|
|
Transmitter
|
|
|
Rf power
|
5-20W
|
|
Modulation restriction
|
±2.5dB@12.5kHz / ±5.0dB@25kHz
|
|
FM hum& noise
|
-40dB@12.5kHz / -45dB@25kHz
|
|
Conducted/radiated emission
|
-36dBm＜1GHz / -30dBm＞1GHz
|
|
Adjacent channel selectivity
|
-60dB@12.5kHz / -65dB@25kHz
|
|
Audio Response
|
+1~-3dB
|
|
Audio Distortion
|
3%
|
|
Emission current
|
3A
|
|
RECEIVER
|
|
|
Frequency stability
|
+/-1.5ppm
|
|
Analogue sensitivity
|
0.3μV / 0.25μV
|
|
Digital sensitivity(5% BER)
|
0.25μV / 0.2μV
|
|
Intermodulation
|
65dB
|
|
Adjacent channel selectivity
|
60dB@12.5kHz / 65dB@25kHz
|
|
Spurious rejection
|
65dB
|
|
Rated audio
|
500mw
|
|
FM hum &noise
|
-40dB@12.5kHz / -45dB@25kHz
|
|
Audio response
|
+1~-3dB
|
|
Receive current
|
350-460mA
|
Package includes：
·1 x Mini Mobile Radio
·1 x Hand microphone
·1 x GPS antenna
·1 x Power cord
·1 x Bracket
·1 x Screw
·1 x Instructions
