HF 4 band Shortwave Antenna.
7MHz (40m)
14MHz (20m)
21MHz (15m)
28MHz (10m)
Retevis 4 HF Band 7/14/21/28MHz Shortwave Antenna for Amateur Transceiver

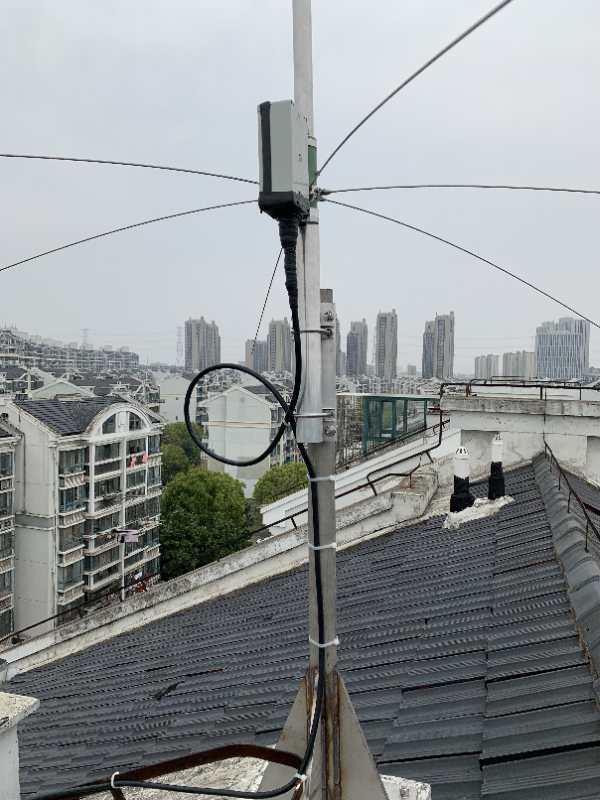

The antenna is Omni directional base station antenna, support 10m / 15m / 20m /40m 4 HF bands, with waterproof, anti-corrosion and high strength aluminum main pole, strong wind resistance characteristics, attaches with included U-bolt to any pipe, pillar, or balcony railing.
Specification:
|
Frequency |
7MHz (40 Meter) 14MHz (20 Meter) 21MHz (15 Meter) 28MHz (10 Meter) |
|
Maximum power |
7MHz: 500W(CW) 1000W(PEP) 14/21/28MHz: 750W(CW) 1500W(PEP) |
|
Effective bandwidth |
7MHz: ≥150KHz 14/21/28MHz: ≥450KHz |
|
SWR |
≤1.5 |
|
Gain |
1.2-1.5 |
|
Connector |
SL16-K |
|
Total length |
7.5 m / 24 ft |
|
Weight |
8kg |
Package Includes:
- 1 x Shortwave antenna(need to assemble)
- 1 x Fixed metal plate
- 4x U-bolt
