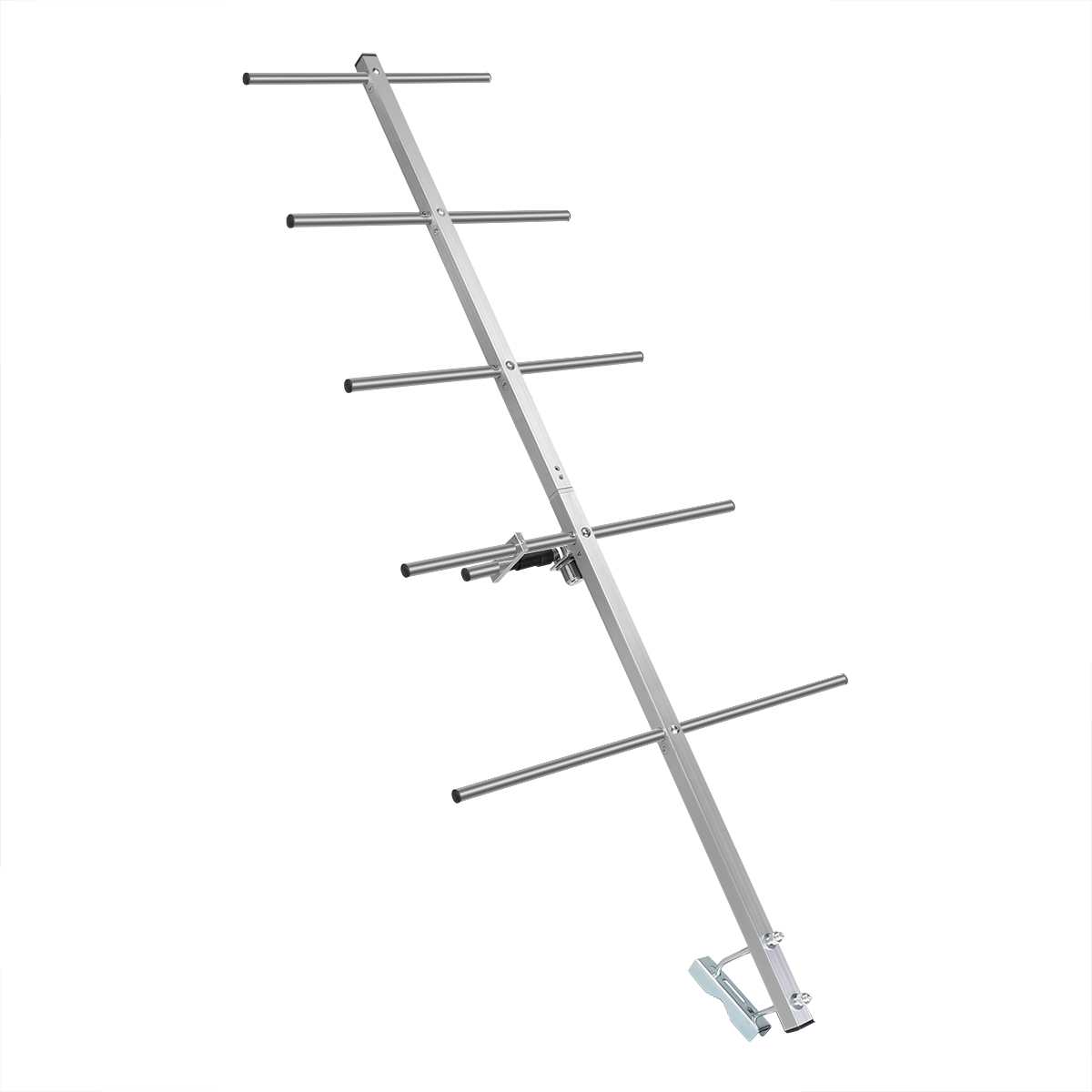

5 Elements
50MHz Bandwidth
Realize long distance communication
Brand: Ailunce
Model: AY03
Frequency: UHF
Length: 72.5cm/28.5inch
Feature
- 5Elements
- High Gain
- Strong directionality
- Strong anti-jamming
- Realize long distance communication
- Simple construction and easy assembly and disassembly
- Lightweight and sturdy, easy to set up
- High-cost performance
|
Electrical Specifications |
|
|
Frequency Range |
400~470 MHz |
|
Bandwidth |
50MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
9 dBi |
|
Polarization |
Vertical |
|
Horizontal 3dB Beam Width |
58° |
|
Vertical 3dB Beam Width |
40° |
|
Front To Back Ratio |
>15 dB |
|
Maximum Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16.K |
|
Mechanical Specifications |
|
|
Size |
725 x 380x 48mm |
|
Mounting hardware |
Ø30～Ø40 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.4Kg |
