VHF(3 Elements),
UHF(5 Elements)
Brand: Ailunce
Model: AY04
Frequency: UHF&VHF
Length: 92.5cm/36.4inch
Feature：
- ▶ VHF(3Elements), UHF(5Elements)
- ▶ High Gain Strong directionality
- ▶ Strong anti-jamming
- ▶ Realize long distance communication
- ▶ Simple construction and easy assembly and disassembly
- ▶ Lightweight and sturdy, easy to set up
- ▶ High-cost performance
|
Electrical Specifications |
|
|
Frequency Range |
144 & 430 MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
9.5 dBi / 11.5 dBi |
|
Horizontal Beam Width |
53°/ 45° |
|
Vertical Beam Width |
48°/ 40° |
|
Polarization |
Horizontal or Vertical |
|
Front To Back Ratio |
>12 dB |
|
Maximum Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16.K |
|
Mechanical Specifications |
|
|
Size |
925×1045×60 mm |
|
Mounting hardware |
Ø30-Ø60 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.85Kg |

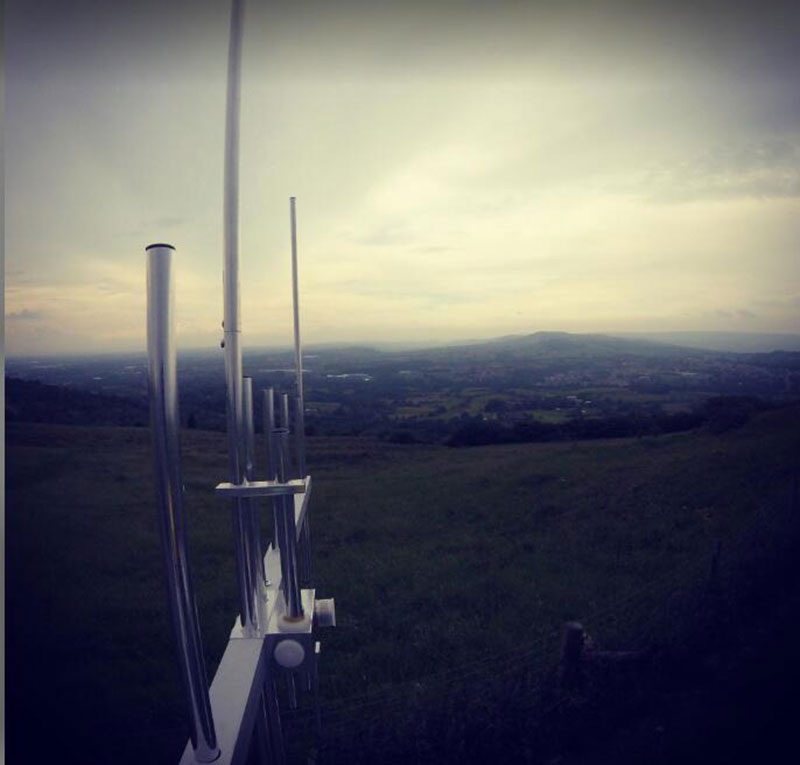

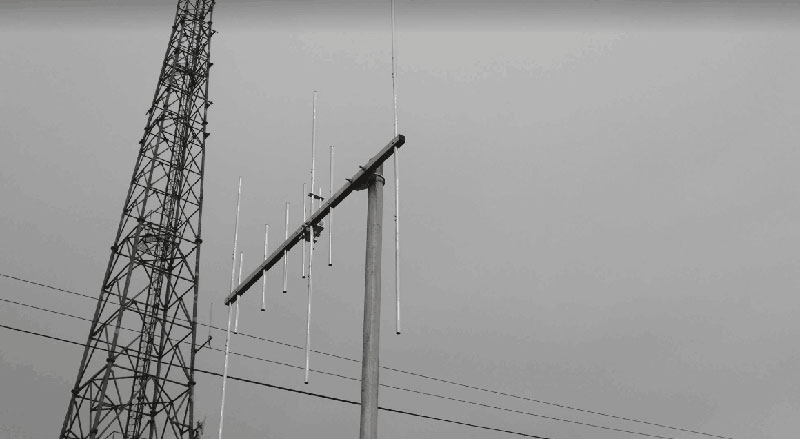

Excellent for Amateur Radio use

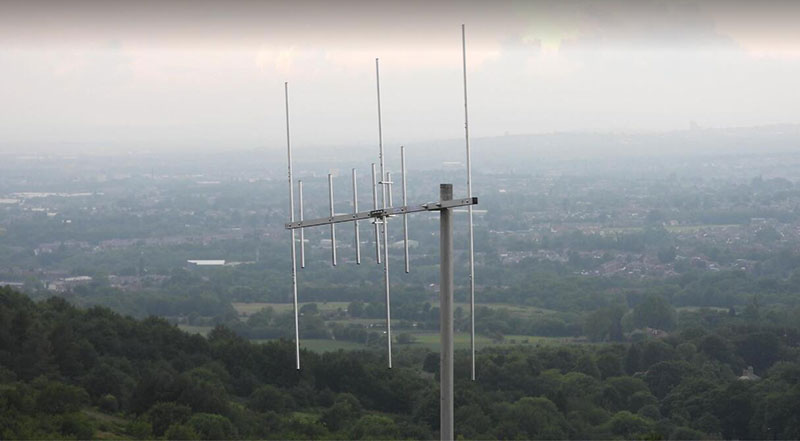

I am probably one of the first people to purchase this antenna. First, very easy to put together; screws are a bit of challenge - there are 2 types; the larger ones are for the boom and center holding the elements. They tend to strip - recommend try to get the hole 0.2mm larger. The second set of screws are specifically for 2m ele extensions; they are mild steel and prone to rust; best to replace with aluminium screws which i did. Matching is pre-tuned; even though this was a negative; i found the swr is well across entire spectrum for 145/440; on 2m - SWR was 1.3:1 and 440; it was 1:1. Really good. Nevertheless, a flexible matching stub will be a welcome modification. I mounted it at 10m height and feeding with rg-58. Excellent. I am able to hit repeaters and hold over 100km away. I am also using Retevis RT-95 dual bander with this antenna. Recommend it if you are intending to use it for a base station or extend it for satellite use.
