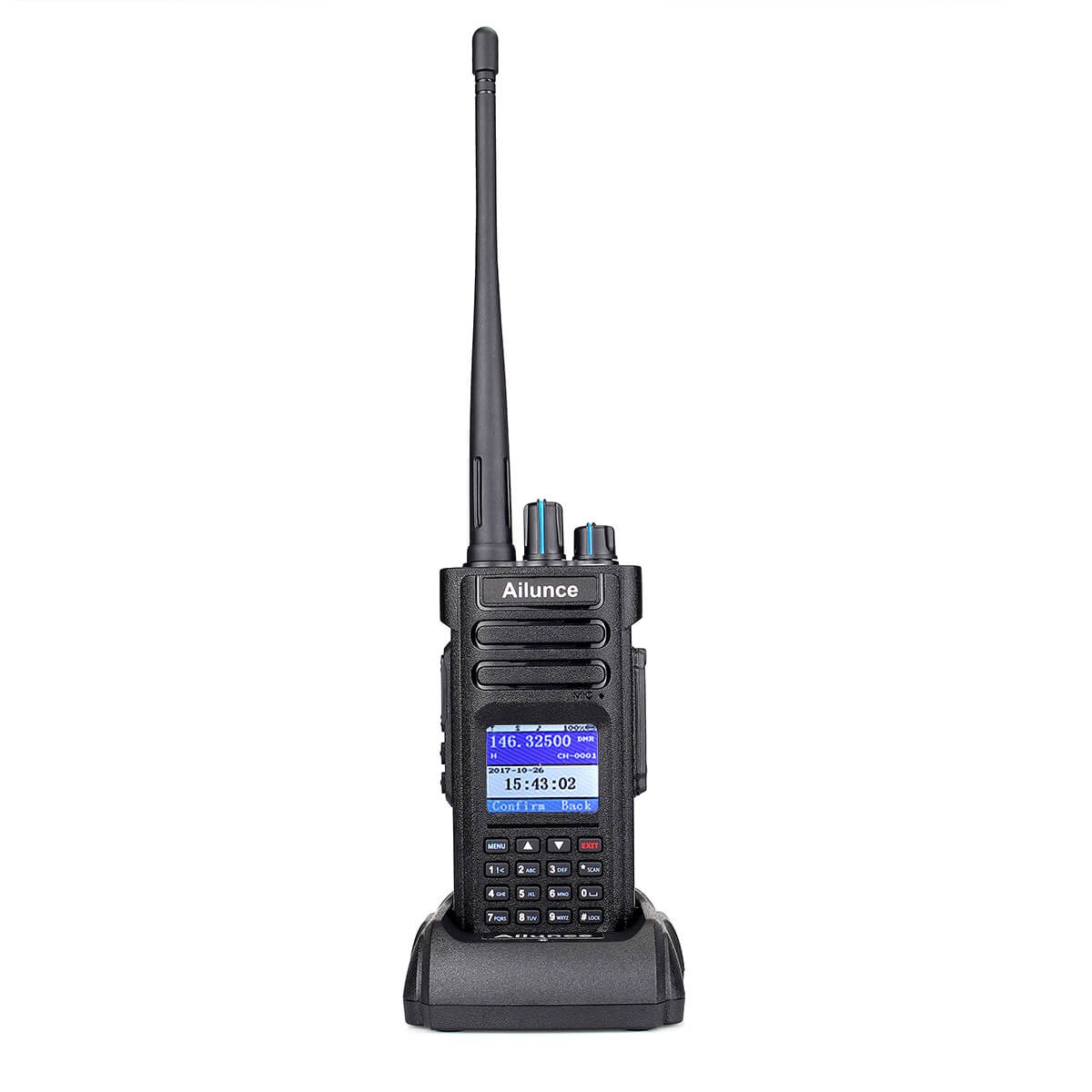

Ailunce HD1 Dual Band DMR Amateur Radio

Condition:  New
Price:  $199.00
Payments:
HD1 GPS HD1

Share:

Description:
HD1 dual band digital radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology. And almost all the operations can be done via radio keypad.

Main Feature
Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3

Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band:136-174 & 400-480MHz& 76-107.95MHz(Receive only )
100,000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable
IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function (Is not compatible with RT3,RT8,RT82.RT90)
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting

Package included:

  • 1 x HD1 two-way radio

  • 1 x Battery

  • 1 x Antenna

  • 1 x Adapter

  • 1 x Charger

  • 1 x User's manual

  • 1 x Belt clip

  • 1 x Sling

    The package will include one Programming Cable as a gift.

  1. Front Panel Programming

  2. Promiscuous Feature

  3. Cross-Band Receive and Transmit

  4. FM Broadcast

  5. DTMF

  6. Support to Save 100000 Contact

  7. Direct Mode/Dual Capacity Direct Mode(DCDM)

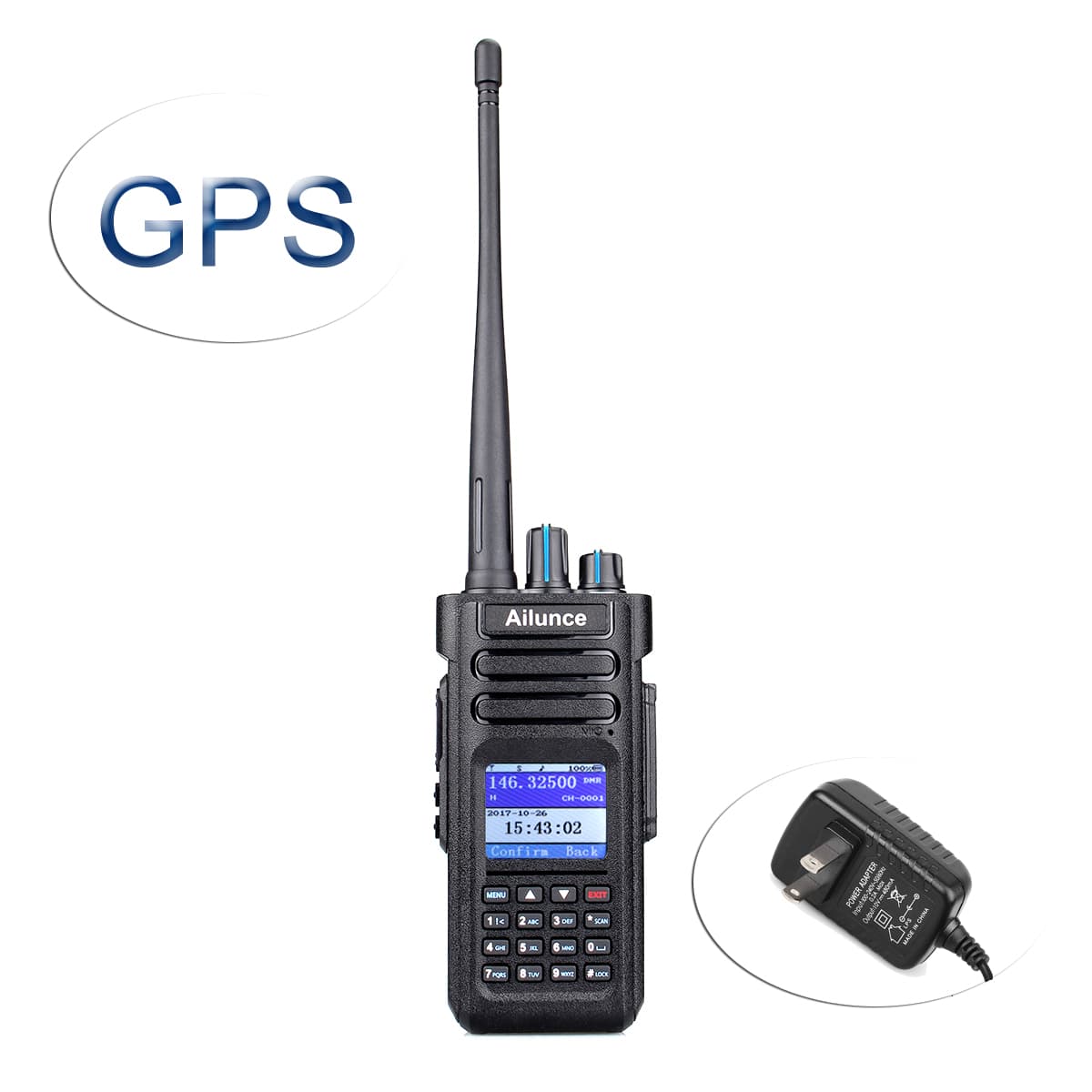

  8. GPS Optional

  9. 32 IDs, Support Edit via Keypad

  10. 3200mAh Battery, Ultra-long Standby Time

  11. IP67

  12. Firmware Upgrade


General specifications

Frequency136-174&400-480MHz
&76-107.95MHz(Receive only)
Channels3000
Operating Temperature-30℃~+60℃
Operating Voltage7.4V DC
Dimension150 x 64x 40mm
Weight360g (with battery)
Battery TypeLi-ion
Battery Capacity3200mAh
Antenna Impedance50Ω

Transmitter

PowerUHF:8w:4w:1w, VHF:10w:5w:1w
Transmit currentAnalog≤1.6A Digital≤0.9A
Frequency Stability±1.0ppm
FM modulation mode12.5KHz@11K0F3E, 25KHz@16K0F3E
4FSK digital mode12.5KHz(data only):7K60FXD
12.5KHz(data and voice):7K60FXW
Modulation distortion<5%
VocoderAMBE+2TM
Adjacent channel power60dBm@12.5KHz, 65dBm@25KHz
Audio Response+1~-3dB
Digital ProtocolETSI-TS102 361-1,-2,-3

Receiver

Analog Sensibility0.35uV/-116dBm(20dB SINDA)
0.22uV/-120dBm(Type)
Digital Sensibility0.30uV/-117dBm(BER 5%)
0.70uV/-110dBm(BER 1%)
Adjacent Channel SelectivityTIA603C:65dB ETSI:60dB
Spurious ResponseTIA603C:75dB ETSI:70dB
Audio Response+1~-3dB
Rated Audio Distortion≤3%(Type)
Audio Power≥500mW
